Frame Rate Converter

Product Overview

TMC’s frame rate converter uses an original frame interpolation technology and creates highly accurate interpolation frames with compact circuit resources. Smooth motion videos are achieved by inserting this interpolated frame between the original frames.

Product Number



  • Less disturbance interpolated images achieved by the “interpolated frame generation algorithm” optimized by DMNA
  • External configuration parameters can be set to interpolation frame for getting desired image quality
  • Compact design to be implemented in an inexpensive FPGA (Example: Cyclone IV series, Artix7 series)
  • 120fps of high speed operation


Input/Output Format YCbCr 4:2:0
Conversion Rate 2 Times
Frame Rate  60fps/120fpsInput: 30/60 fpsOutput: 60/120 fps
Resolution 2K or less
Input/Output Interface YCbCr Raster Scan Format (Customizable)

This IP supports both color spaces of YCbCr and YUV.

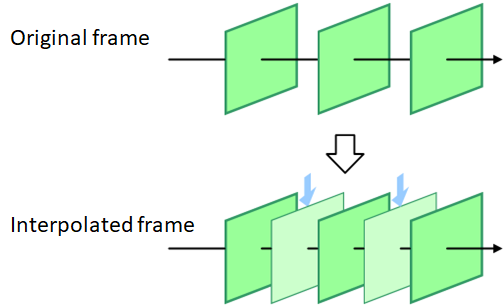

Image Diagram
