H.264/AVC 1080 60p Baseline Profile Encoder/Decoder
Product Overview
H.264/AVC encoder/decoder have been used in a wide range of the fields such as digital cameras, surveillance cameras, and broadcasting equipment since the specification was standardize in 2003, but nowadays, in order to downsize the equipment, reduce the costs, and consider the environment, there is a need to implement them in smaller devices with low power consumption.
TMC has developed a compact, low-power encoder/decoder that maintains high image quality and performance.

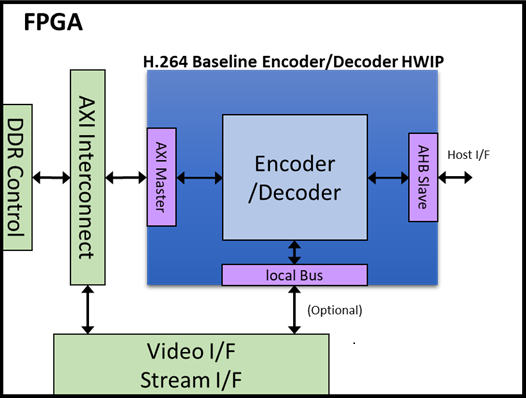

- Normal Version

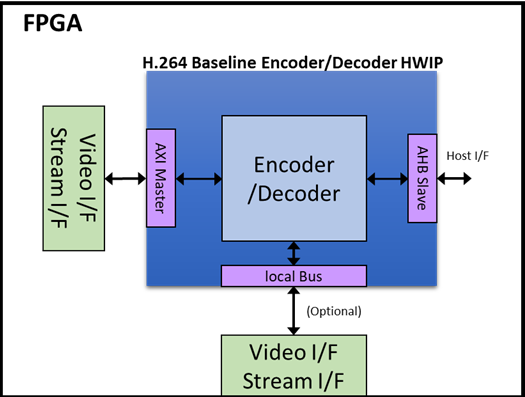

- Intra-Only Version
Model Numbers
- Encoder : TM21745
- Decoder : TM21746
Features
- Because of its compact design, it can be implemented in cheap FPGAs to reduce the costs. (e.g. CycloneV series, Artix7 series)
- Depending on the device used, processing at up to 4K30fps is possible. (e.g. Arria10 series, Kintex Ultrascale(+) series, with support for devices from Lattice, Efinix, and Microchip)
- The low operating frequency made it possible to reduce the power consumption.
- The AXI Bus is equipped as standard for external memory access for easy integration.
- Developed based on the design assets used in the digital cameras for many years, maintaining high image quality and high performance.
- By choosing the “Low-Latency Encoding option (P-Only)”, real-time processing can be achieved.
- The encoder supports direct image input and stream output without external memory. (Optional feature)
Specification
| Supported Standards | Compliant to ISO/IEC14496-10, ITU-T Rec. H.264, Baseline Profile |
| Maximum Performance | 1920 x 1080/60p (3840 x 2160/30p) |
| Image Format | YCbCr 4:2:0 |
| Image Bit Depth | 8 bits |
| Output Format | Byte stream format (Annex B) |
| External Memory Interface | AXI4 |
This IP supports both color spaces of YCbCr and YUV.
Application Examples
Related Products
Model Numbers
- Encoder : TM21755
- Decoder : TM21756
Features
- Because of its compact design, it can be implemented in cheap FPGAs to reduce the costs. (e.g. CycloneV series, Artix7 series)
- Depending on the device used, processing at up to 4K30fps is possible. (e.g. Arria10 series, Kintex Ultrascale(+) series, with support for devices from Lattice, Efinix, and Microchip)
- The low operating frequency made it possible to reduce the power consumption.
- No external memory access made it possible to reduce the cost.
- Developed based on design assets used in digital cameras for many years, maintaining high image quality and high performance.
- The encoder supports direct image input and stream output without using the AXI bus. (Optional feature)
Specification
| Supported Standards | Compliant to ISO/IEC14496-10, ITU-T Rec. H.264, Baseline Profile |
| Maximum Performance | 1920 x 1080/60p (3840 x 2160/30p) |
| Image Format | YCbCr 4:2:0 |
| Image Bit Depth | 8 bits |
| Output Format | Byte stream format (Annex B) |
This IP supports both color spaces of YCbCr and YUV.
Application Examples
Related Products
