Compact IP Codec FHD Low Latency IP Transmission System
Product Overview
TMC’s low latency Compact IP Codec Transmission System solves trade-off issues at the best balance, such as image size, image quality, transmission latency, transmission rate, communication cost, power consumption and weight.
Model Numbers
- Encoder: TM7006E (HDMI input), TM7007E (SDI input)
- Decoder: TM7006D (HDMI output)
Features
- Transmitting the Full HD image at low latency as 0.1 second, maintaining practical image quality.
- No stresses in using the internet because of transmission with low bit rate.
- Possible for bi-directional audio communication because full duplex voice transmission function is pre-installed.
- Easy operation by only pushing the power button after connecting camera, battery and network to the system.
- TMC’s original codec with high security of transmission data. Impossible to read even if acquiring data unjustly from the internet.
- The light weight as 1.3 kg, almost same weight as 15 inches laptop computer even if including a camera and a battery.
Specification
| Power Supply | DC 12 V +/- 10 percent, AC adapter (100 V to 240 V) attached |
| Dimensions | 7.09 (W) x 1.97 (H) x 5.91 (D) inches |
| Weight | 3.3 lbs (Main Unit) |
| Power Consumption | 20 W (Max.) |
| Operating Temperature Range | 0 to 50 ℃ |
| Transmission IP Rate | 128 kbps to 3 Mbps |
| Transmission Transfer Protocol | UDP/IP, Communication packet: TMC’s original packet for low latency |
| Max. Number of Linkable Decoders | 20 units |
| Video Coding Format | TMC’s original |
| Audio Coding Format | OPUS |
| Video Input Format | 1080i 59.94/1080p 30/720p 60/480i 59.94/480p 30 (Automatically select) |
| Video Coding Frame Rate | 30 fps/15 fps/10 fps/5 fps |
| Video and Audio Input / Output Format | HDMI/SDI (Audio Embedded) |
| Audio Sampling Rate | 48 kHz/24 kHz |
| Audio Channel Number | Zero/1 ch./2 ch. |
| Audio Transfer Bit Rate | 192 kbps/128 kbps/64 kbps/32 kbps/16 kbps (1ch) |
| Bi-directional Voice Communication function | |

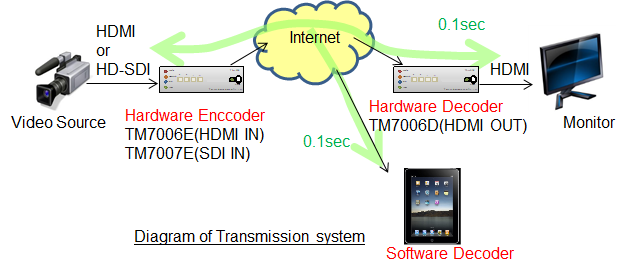

Application Examples
More Information
Click below for a movie
Link to YouTube
Document
Compact IP Codec FHD Low Latency IP Transmission System
