H.264/AVC Baseline Profile Encoder/Decoder for DRP
Product Overview
TMC has developed and commercialized an original IP for a low-CPU-load H.264/AVC encoder/decoder by hybrid processing of DRP and CPU, which are installed in RZ/A2M.
This software is H.264/AVC (a highly efficient image compression standard standardized in ISO/IEC 14496-10) compliant, so there is no need to concern about compatibility like with proprietary standards.
Features
[Decoder]
- WVGA 30fps encoding is achieved by Cortex-A9 with less than 40% CPU load.
- By using the MIPI camera which supports YCbCr4:2:2 format, it is possible to encode without format conversion.
[Encoder]
- WVGA 30fps encoding is achieved by Cortex-A9 with less than 40% CPU load.
- By using the MIPI camera which supports YCbCr4:2:2 format, it is possible to encode without format conversion.
Specification
| Compression Format | Annex.B Byte stream format |
| Image Format | YCbCr 4:2:2 CbYCrY Packed format |
| Resolution | 320 x 240 to 800 x 480 |
This IP supports both color spaces of YCbCr and YUV.

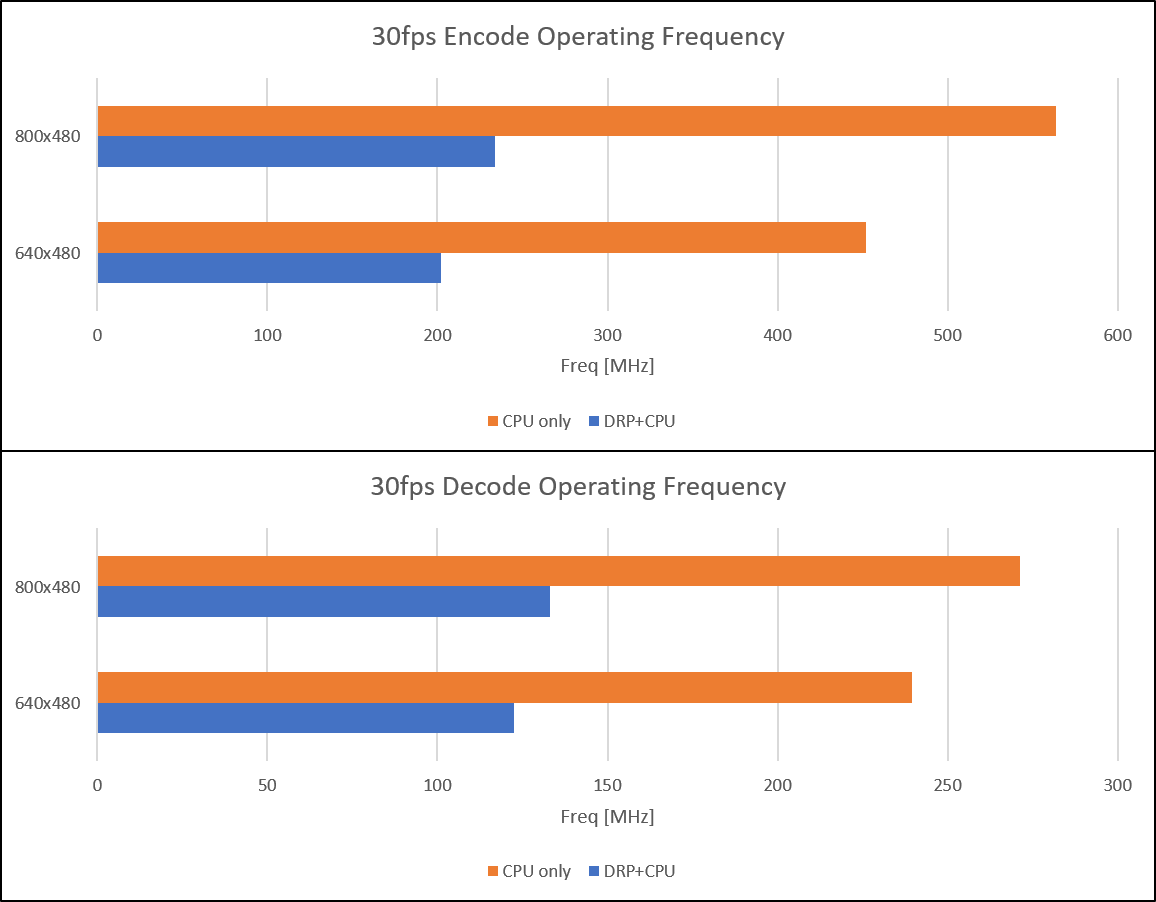

CPU vs CPU+DRP
Product & Technology Inquiries Please feel free to contact us with technical questions regarding software integration, such as "Will it work on our current CPU?" or "Is it compatible with our existing OS?", or to consult about an evaluation version.
