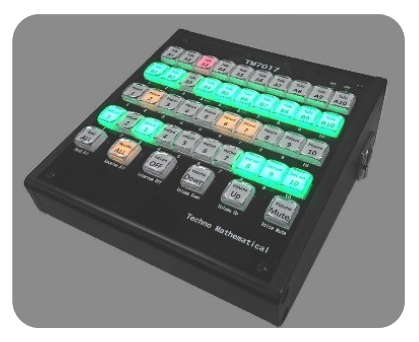

TM7017 Tally & Intercom Control Panel
Product Overview
Tally & Intercom Control Panel is an optional device for low latency Compact IP Codec FHD transmission systems. This control panel can transmit the video and audio to up to 10 tablets, also it can transmit the tally information and perform intercom communication simultaneously.
Model Numbers
- TM7017
Features
- Easy operation by only pushing the buttons on the control panel. This control panel can transmit the tally information and perform intercom communication with up to 10 tablets.
- External tally information from the switcher can be transmitted when connected to a switcher.
- Intercom function has capability of switching “Send to all tablets” or “Individual conversation”.
- The dedicated application is used for display of the tally information and intercom communication. This application can call the other parties, control the volume, switch the mute, etc.
- TMC’s voice filter feature, such as echo canceller and so on, provide clear voice reception. Microphone amplifier and speaker amplifier to support various headsets are built-in.
Specification
Control Panel
| Button switches | Tally A switches x 10, Tally B switches x 10, Intercom switches x 10, Intercom function switches (Volume, Mute etc.) x 6 |
| External Tally Input Interface | GPI input (D-sub 25 pins, female), TSL input (D-sub 9pins, female) |
| Encoder Connector | USB Type B (female) |
| Headset Connector | Cannon connector (XLR type 4pins, female) |
| Dimensions | 7.09 (W) x 7.14 (H) x 2.61 (D) inches |
| Weight | 2.65 lbs |
| Power Supply | Bus power of USB connector |
Tablet
| Applicable Tablet | iPad / iPhone |
Viewer Application
- Dedicated viewer application can be downloaded from App Store.
App Store is a service mark of Apple, Inc. and Apple, Apple logo, iPad and iPhone are trademarks of Apple, Inc.

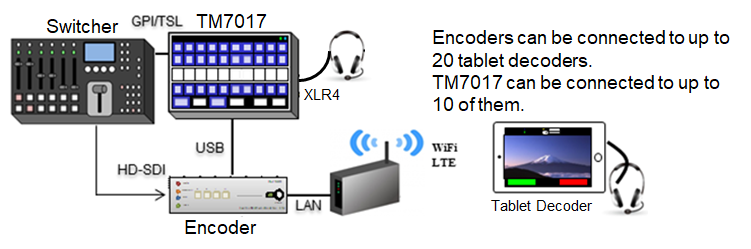

Application Examples
More Information
Click below for a Movie
Link to YouTube
Document
TM7017 Tally & Intercom Control Panel
