JPEG Encoder/Decoder
Product Overview
Since its standardization of ISO/IEC 10918-1 in 1994, JPEG has been continued to be used as a still image storage format.
TMC has developed and commercialized a baseline JPEG hardware IP compliant to the ISO/IEC 10918-1 standard as a very compact and high-speed compression IP.

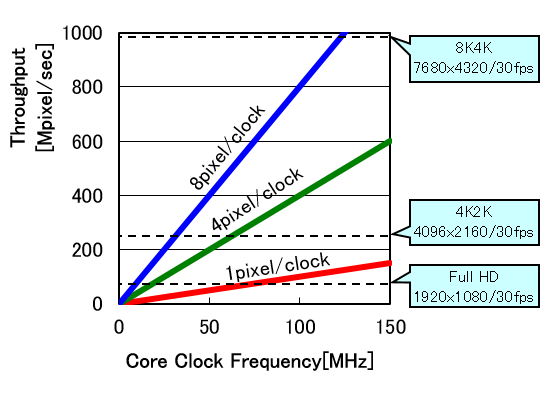

- 1-pixel/clock
- 4-pixel/clock
- 8-pixel/clock
Product Name
JPEG Encoder/Decoder 1-pixel/clock
Model Numbers
- Encoder: TM20195
- Decoder: TM20196
Features
- By optimizing the encoding algorithm, TMC has achieved miniaturization and high speed.
- Due to its compact design, this IP can be implemented in inexpensive FPGAs to reduce the costs. (Example: Cyclone IV series, Artix7 series)
- Simple interface makes it easy to integrate and shortens the design time.
Specification
| Compression Format | JPEG (ISO/IEC 10918-1) |
| Throughput | 1 pixel/clock @ YCbCr 4:2:2 |
| Image Size | 65k x 65x pixels (max.) |
| Image Format | YCbCr 4:4:4/4:2:2/4:2:0/4:0:0 |
| Bit Depth | 8 bits |
| Interface Specification | AXI3 |
This IP supports both color spaces of YCbCr and YUV.
Model Names
JPEG Encoder/Decoder 4-pixel/clock
Model Numbers
- Encoder: TM20135
- Decoder: TM20136
Features
- By optimizing the encoding algorithm, TMC has achieved miniaturization and high speed.
- Compared to the 1 pixel/clock version, it achieves 4 times higher performance with about twice the circuit size.
- Due to its compact design, it can be implemented in inexpensive FPGAs to reduce the costs. (Example: Cyclone IV series, Artix7 series)
- Simple interface makes it easy to integrate and shortens the design time.
Specification
| Compression Format | JPEG (ISO/IEC 10918-1) |
| Throughput | 4 pixels/clock @ YCbCr 4:2:2 |
| Image Size | 65k x 65k pixels (max.) |
| Image Format | YCbCr 4:4:4/4:2:2/4:2:0/4:0:0 |
| Bit Depth | 8 bits |
| Interface Specification | AXI3 |
This IP supports both color spaces of YCbCr and YUV.
Product Name
JPEG Encoder 8-pixel/clock
Model Numbers
- Encoder: TM20145
Features
- By optimizing the encoding algorithm, TMC has achieved miniaturization and high speed.
- Compared to the 4-pixel/clock version, it achieves twice the performance with about twice the circuit size. Also, compared to the 1-pixel/clock version, it achieves 8 times the performance with about 4 times the circuit size.
- Due to its compact design, this IP can be implemented in inexpensive FPGAs to reduce the costs. (Example: Cyclone IV series, Artix7 series)
- Simple interface makes it easy to integrate and shortens the design time.
Specification
| Compression Format | JPEG (ISO/IEC 10918-1) |
| Throughput | 8 pixels/clock @ YCbCr 4:2:2 |
| Image Size | 65k x 65x pixels (max.) |
| Image Format | YCbCr 4:4:4/4:2:2/4:2:0/4:0:0 |
| Bit Depth | 8 bits |
| Interface Specification | AXI3 |
This IP supports both color spaces of YCbCr and YUV.
Document
JPEG Encoder/Decoder
Product & Technology Inquiries Please feel free to contact us with technical questions regarding software integration, such as "Will it work on our current CPU?" or "Is it compatible with our existing OS?", or to consult about an evaluation version.
